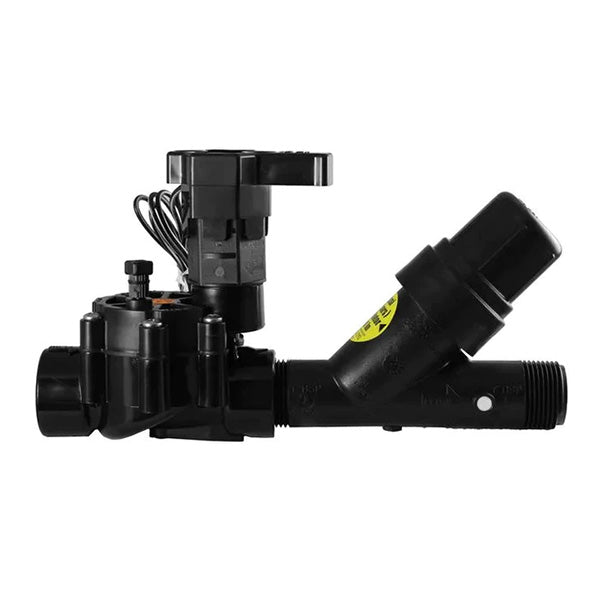

XCZLF-100-PRF - Low Flow Control Zone Kit with 1 in. Low Flow Valve and 1 in. Pressure Regulating Filter (Assembled)

XCZLF-100-PRF - Low Flow Control Zone Kit with 1 in. Low Flow Valve and 1 in. Pressure Regulating Filter (Assembled)

Regular price $44.00 USD
Regular price $75.78 USD Sale price $44.00 USD
Sale Sold out

Low Flow Residential Control Zone Kits

Optimized for Low Flow: Includes the field-proven Low Flow Valve, the only valve on the market that can handle low flows (below 3 gpm) without weeping

Compact Solution: Shorter kits with only two components (valve plus pressure-regulating filter) mean that you can fit more Control Zone Kits in a valve box, saving time and money.

Long-term Reliability: These preassembled kits with PR Filters provide on/off control, filtration, and pressure regulation with only two parts; so there is less chance of leakage at the connections, both at installation and over the life of the system

Features

  • Flow Range:
    • XCZ-075-PRF: 0.2 to 5.0 gpm; (0.8 to 18.91 l/m)
    • ICZ-075-9V: 0.2 to 5.0 gpm; (0.8 to 18.91 l/m)
    • XCZ-LF-100-PRF: 0.2 to 10.0 gpm; (0.8 to 37.85 l/m)
  • Inlet Pressure: 20 to 150 psi: (1.4 to 10.3 bar)
  • Regulated Pressure:
    • XCZ-075-PRF: 30psi (2.1 bar)
    • ICZ-075-9V: 30psi (2.1 bar)
    • XCZ-LF-100-PRF: 40 psi (2.8 bar)

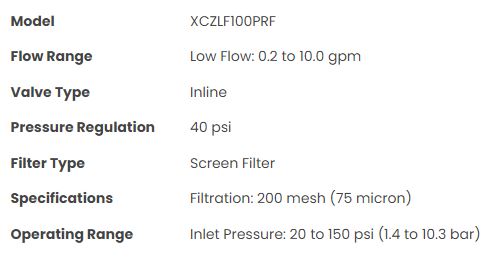

Specifications

  • Filter Type: Stainless steel screen filter; 200 mesh (75 micron)
  • Flow Rate Capability: 13 to 300 ft (4 to 91m) of dripline
  • Valve Box: Mini-Standard or 10” Round
  • Inlet Size:
    • XCZ-075-PRF: 3/4” x 3/4” NPT
    • ICZ-075-9V: 3/4” x 3/4” NPT/BSP
    • XCZ-LF-100-PRF: 1” x 1” NPT
  • Warranty: 3 years

Valve Type: Inline
