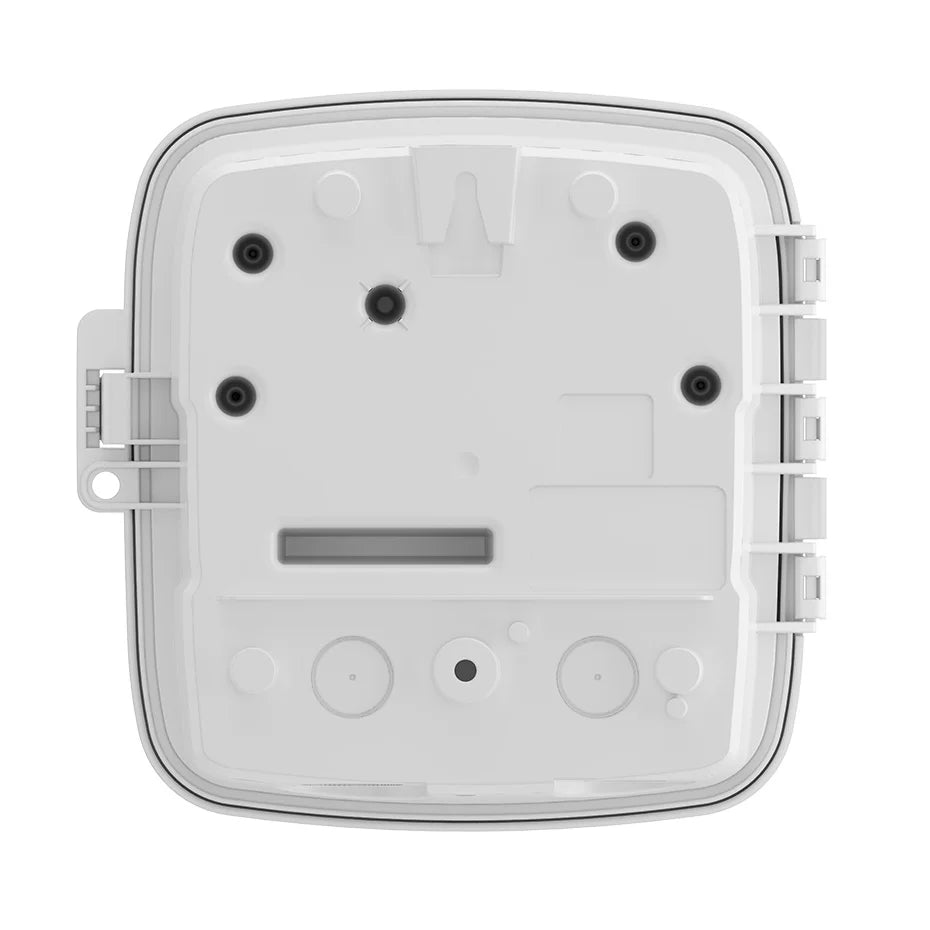

RC2 - Controller 8 Station - 120V

Features

• Worry-Free System Install
• Schedule templates for easy configurations
• Quick pair technology
• Wireless access point for complete system access without WiFi
• Multi-Lingual to set-up in native language Seamless Remote Management and Control
• WiFi connected for remote site management.
• With our free professional app you can use your phone like a wireless remote to water a single zone, all zones, or set a custom schedule
• Manage and monitor all irrigation events and warnings real-time Smart and Responsible
• Weather data from local weather sources automatically adjust system run times on a daily basis. Your yard receives only the water it needs while saving up to 50% in water • WaterSense certified with superior programming capabilities designed to meet the most stringent water restrictions Specifications
• 2.4 GHz (only) WiFi router compatible with WEP and WPA security settings
• Compatible with iOS 8.0 and Android 6 (Marshmallow) or later mobile devices
• Operating Temperature: 14° F (-10° C) to 149°F (65°C)
• Storage Temperature: -40°F (-40°C) to 150°F (66°C)
• Operating Humidity: 95% max @ 40°F to 120°F (4°C to 49°C) non-condensing environment
• Master Valve Control
• Pre-Installed Power Cord
• 8-Station Capacity
• 3 Programs, 4 Start times/program

Electrical Specifications

• Input required: 120V~, 60Hz,0.23A(International models:230V~, 50-60Hz, 0.14A)
• Output: 24V~, 60Hz, 1.0A Maximum (International models: 24V~, 50- 60Hz, 1.0A Maximum) Master Valve/Pump Start Relay
• External battery back-up not required. Nonvolatile memory permanently saves the current programming

Regulatory Compliance

• 120V Models: UL, FCC, ISED
• 230V Models: CE, UKCA, ACMA RCM

Dimensions

• Width: 7.92 in. (20.1 cm)
• Height: 7.86 in. (20.0 cm)
• Depth: 3.51 in. (9.0 cm)

Models

• RC2-120V: 8-station 120VAC
• RC2-230V: 8-station 230VAC
• RC2-AUS: 8-station

Australia Accessories

• WR2-RFC: Rain + Freeze Combo
• WR2-48: Rain + Freeze Combo with 48-hour hold
• RSD-BEx: Rain sensor w/ latching bracket, extension wire
