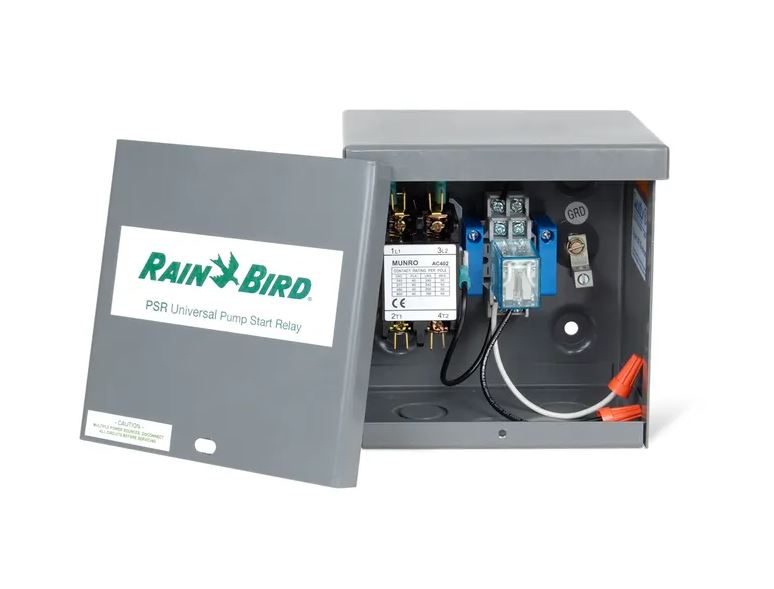

RAINBIRD PUMP START RELAY
RAINBIRD PUMP START RELAY
***PRODUCT NOT SOLD ONLINE***
PLEASE CALL STORE FOR A SHIPPING QUOTE- 541-716-0352
The Rain Bird pump start relays work with
a lawn controller’s start/stop command to
facilitate the electrical path from the breaker
box to the pump motor.
Rain Bird PSR110IC and PSR220IC Universal
Pump Start Relays provide “pilot duty”
operation for all types of electrically drive
pump equipment with available 24 volt coil
voltage.
Features
• 40 AMP UL listed relay
• Quick connect terminals with wire nuts
• Grounding provision
• Compatible with 24 VAC timed lawn
controllers
• Compatible with 110 or 220 VAC 3/4 hp
thru 5 hp* single phase pumps
• Grey “baked-on” powder coating, for long
life in difficult environments
• UL Listed as “Enclosed Industrial Control
Panels” and backed by a limited two-year
warranty
• Housed in compact NEMA 3R weather
tight enclosures
Enclosure
• UL Listed
• Nema 3R
• Powder-coated steel – Grey
• Dimensions - 6” w x 6” h x 4” d
Electrical Information
• Power Relay
• Electrical Rating: 120v – 24 FLA,
240v – 28 FLA
• Largest Motor: 120v – 2 hp, 240v – 5 hp
• Short Circuit Rating: 120v – 5kA, 240v – 5kA
• Control voltage required: 24v
• Hertz: Sixty (60)
• Inrush/run: 950mA/360mA
