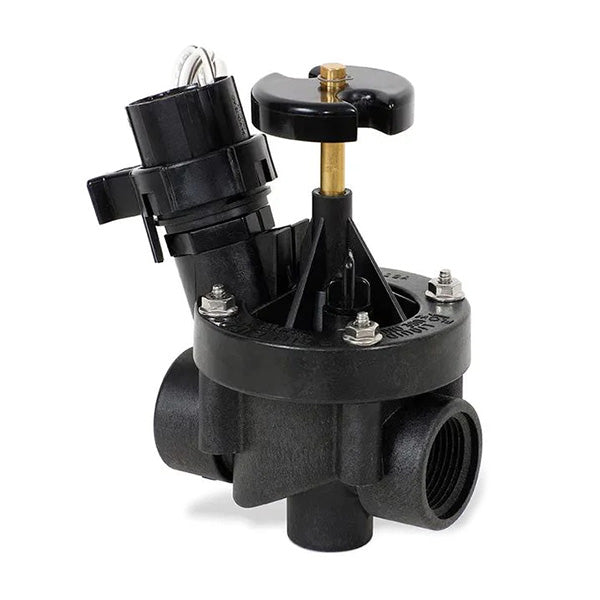

Rain Bird PESB 1" Inline Plastic Industrial Irrigation Valve

Features

• 1 in. (26/34) plastic industrial irrigation valve
• Durable glass-filled nylon construction with fabric-reinforced rubber diaphragm for long life and reliable performance
• Globe configuration
• Normally closed, forward flow design
• Slow closing to prevent water hammer and subsequent system damage
• Low flow capability for a wide range of applications
• One-piece solenoid design with captured plunger and spring for easy servicing; prevents loss of parts during field service
• Flow control handle adjusts water flows as needed
• The PEB Series is our most durable plastic irrigation valve. This industrial-strength glass-filled nylon globe valve is ideal for commercial irrigation applications.

Additional Features:

• Manual internal bleed manually operates the valve without allowing water into the valve box; allows pressure regulator to be adjusted without turning the valve on at the controller first.
• Manual external bleed permits flushing debris from the system. Recommended for system start up and after repairs.
• Stainless steel studs molded into the body. Bonnet can be attached and removed more easily and more often without damaging threads.

Technical Information

• Operating Temperature: Up to 150° F (66° C)
• Dimensions:
  • 6 1/2" x 4" x 4"
  • (16,5 cm) x (10,2 cm) x (10,2 cm)
• Electrical Specifications:
  • 24 VAC 50/60 Hz (cycles per second) solenoid
  • Inrush current: 0.41A (9.9VA)
  • Holding current: 0.14A (3.43VA)
  • Coil resistance: 30-39 Ohms
• Flow Range:
  • Flow without PRS-D option: 0.25 to 200 GPM (0,06 to 45 m3/h; 0,02 to 12,60 l/s)
  • Flow with PRS-D option: 5 to 200 GPM (1,14 to 45 m3/h; 0,32 to 12,60 l/s)
• Operating Pressure: 20 to 200 psi (1,4 to 13,8 bar)
