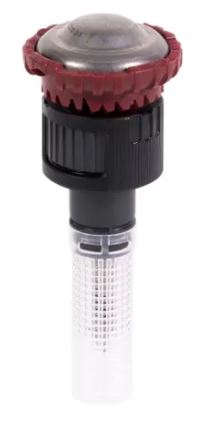

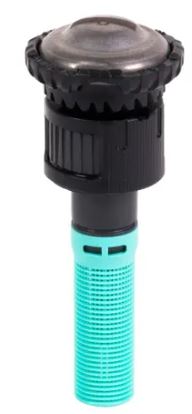

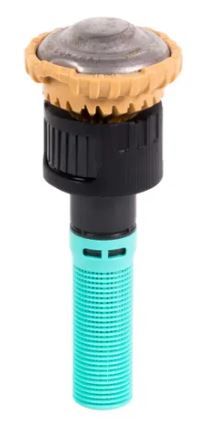

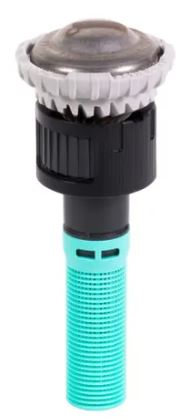

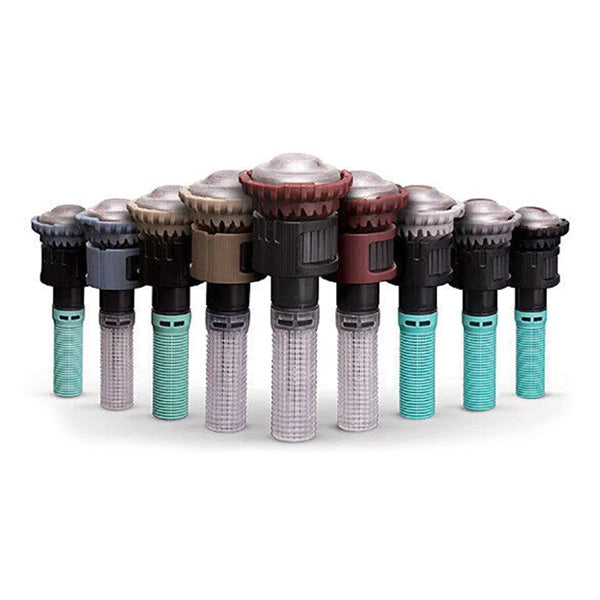

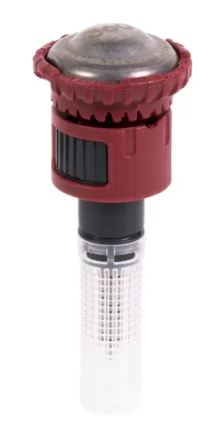

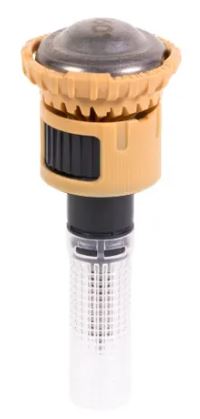

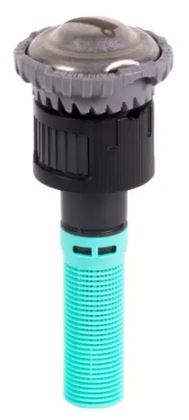

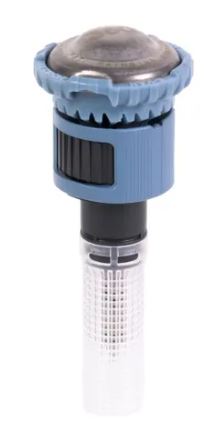

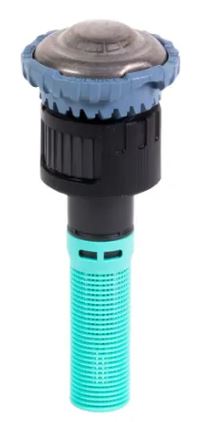

Rain Bird® R-VAN Adjustable Rotary Nozzles save more water, are easier to use, and are lower priced compared to leading rotating nozzles. R-VANs thick streams and large water droplets cut through the wind to deliver water where you want it. R-VANs are easier to use thanks to its hand-adjustable arc and radius. R-VANs are also 23% lower list priced and require half the SKUs to achieve 45° to 360° coverage vs. the leading rotating nozzle brand.
Features
Matched precipitation across radius, arcs, and pattern types
Low precipitation rate reduces run-off and erosion
Adjust arc and radius without tools
A pull-up to flush feature clears the nozzle of dirt and debris
Color coded and laser marked for easy identification of R-VAN model
Maintains efficient performance at high operating pressures without misting or fogging
Compatible with all models of Rain Bird spray bodies, risers and adapters
Installing with Rain Bird 5000 MPR Series Rotors allows for matched precipitation from 8’ to 35’ (2.4m to 10.7m)
Three year trade warranty
Operating Range
Pressure Range: 30 to 55 psi (2.1 to 3.8 bar)
Recommended Operating Pressure: 45 psi (3.1 bar)
Spacing: 8’ to 24’ (2.4 to 7.3m)
Adjustments: Arc and radius should be adjusted while water is running
