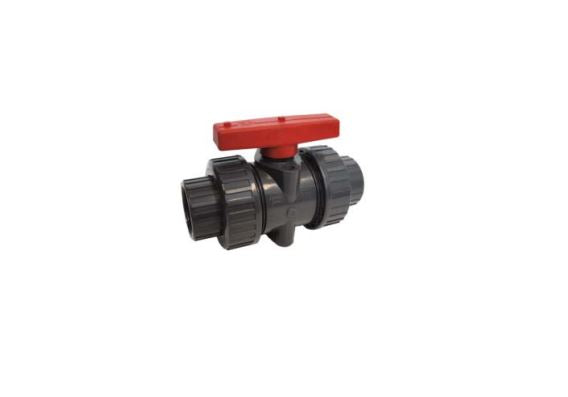

PVC SCH.80 TRUE UNION BALL VALVES (THREADED)

SCH 80 PVC True Union Ball Valve Features:
• Heavy duty thermoplastic grey Sch 80 PVC (Type 1, Grade 1).
• Full port design.
• Available with either EPDM or Viton® o-ring stem, carrier and
union seals.
• PTFE seats are resistant to chemical corrosion.
• 150 PSI working pressure at 73º water, non-shock.
• Working temperature -4ºF to 140ºF.
• Unique double union/double block design permits in-line
maintenance without disconnecting pipe and with no special tools.
• Both ends are blocked with bayonet-style locks which prevents the
ball from being blown out. Ball remains in place upon removal of valve.
• External adjustment for seat wear.
• Individually cartoned.
• Imported.
