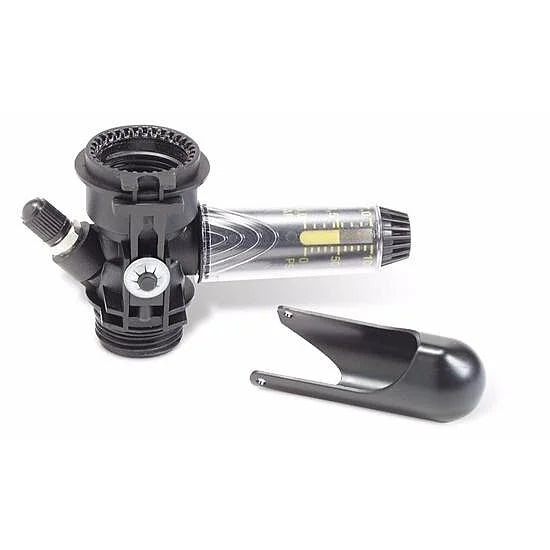

PRSDIAL - PRS-Dial Pressure Regulator

PRSDIAL - PRS-Dial Pressure Regulator

Regular price $67.00 USD
Regular price $100.00 USD Sale price $67.00 USD
Sale Sold out

Features

  • Valve pressure regulator
  • Improved spike reduction capabilities reduce water hammer
  • Ergonomic design with snap-tight cover to prevent vandalism
  • Waterproof dial cartridge eliminates fogging and binding
  • Dial cartridge retrofits into all existing PRS-B units
  • Schrader valve connects pressure hose gauge, ordered separately
  • Easy field installation
  • Fits all Rain Bird PGA, PEB, PESB, PESB-R, GB-R, EFB-CP-R, BPE and BPES series valves.
  • The PRS-Dial is an excellent means of regulating outlet pressure at the valve regardless of incoming pressure fluctuations. The visible scale makes adjustment quick and easy. The regulator fits all Rain Bird PGA, PEB, PESB, PESB-R, GB-R, EFB-CP-R, BPE and BPES series valves.

Additional Features:

  • Proper operation requires inlet pressure to be a minimum of 15 psi (1,04 bar) higher than desired outlet pressure
  • For areas with very high pressure or uneven terrain, install sprinklers with PRS pressure regulating stems and/or SAM check valves
  • When inlet pressure exceeds 100 psi (6,9 bar), a regulating master valve or inline pressure regulator is suggested.
  • Rain Bird does not recommend using the pressure regulating module for applications outside the recommended flow ranges.
  • To reduce the effects of water hammer, Rain Bird recommends flow rates in the supply line not to exceed 7.5 ft/sec (2,3 m/s).
  • For flows below 5 gpm (1,14 m3/h; 0,32 l/s) Rain Bird recommends use of upstream filtration to prevent debris from collecting below the diaphragm.

For flows below 10 gpm (2,27 m3/h; 0,63 l/s) Rain Bird recommends the flow control stem be turned down two full turns from the fully open position.
