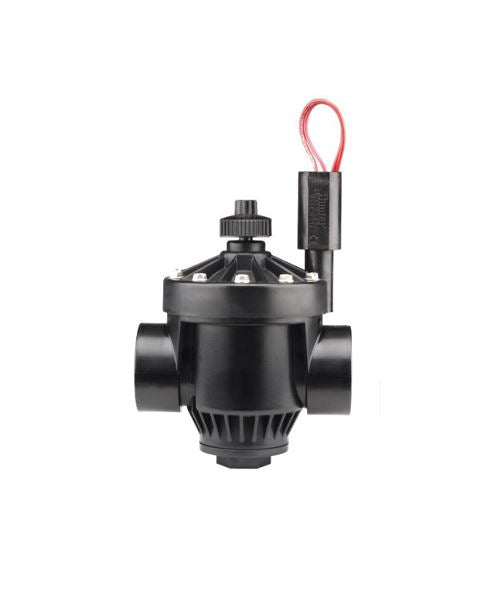

PGV-151G 1 1/2" ELECTRIC VALVE

KEY BENEFITS
• External/internal manual bleed allows
for quick and easy
activation at the valve
• Double-beaded diaphragm seal design
ensures leak-free performance
• Captive bonnet screws eliminate the
possibility of lost parts
during disassembly
• Triple-tool bonnet screws are
compatible with standard or Phillips
screwdrivers as well as a nut driver
• Each valve available with globe
or angle configuration for
convenient placement
• Encapsulated solenoid with captive
plunger used on every Hunter valve
provides hassle-free service
• Flow control maximizes efficiency
and prolongs the life of the system
USER-INSTALLED OPTIONS
• Accu Sync®
Pressure Regulator at the valve*
• DC-Latching Solenoid for battery-operated controllers (P/N 458200)
• Solenoid conduit cover (P/N 464322)
• Reclaimed flow control handle (P/N 607105)
FACTORY-INSTALLED OPTIONS
• LS: Valve without solenoid
• DC: DC-Latching Solenoid for battery-operated controllers; see page 88
OPERATING SPECIFICATIONS
• Flow:
- PGV-151: 20 to 120 GPM
- PGV-201: 20 to 150 GPM
• Recommended pressure range:
20 to 150 PSI
• Temperature rating: 150°F
• Warranty period: 2 years
SOLENOID SPECIFICATIONS
• 24 VAC solenoid
- 350 mA inrush, 190 mA holding, 60 Hz
- 370 mA inrush, 210 mA holding, 50 Hz
