NELSON S7 MISTER

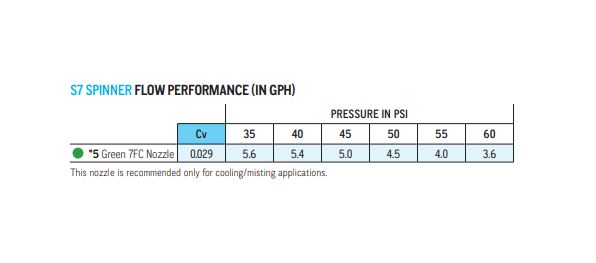

The S7 with the 5 gph flow control nozzle is part fogger and part very-small
droplet spinner. It requires higher pressure (35 to 55 PSI, and 50 PSI is
ideal). For cooling apples place 12 to 20 feet apart in every row and use an
application of 20 to 25 gpm/acre to reduce the amount of water wetting the
ground. Because this product cools more effectively than foggers it can be
used for shorter time periods.
MOUNTING OPTIONS:
1. Use the UQC-4 assemblies (24”, 30” or 48”) or parts to mount on a ½ PVC
pipe (shown above and on right).
2. Use the hanging bracket with UQC-4 assembly options or parts.
3. Tie the S7 to the wire or polyethylene water supply with a zip tie and use a
12” UQC-4 assembly.
