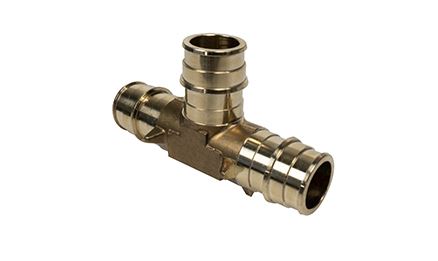

LF BRASS F1960 TEE
LF BRASS F1960 TEE
SPECIFICATION
Sioux Chief ASTM F1960 Grip™ brass PEX fitting system shall be used in
hot and cold water distribution systems. Fittings are approved for use with
ASTM F876 PEX tubing with cold-expansion rings. Please contact Sioux Chief
representative for specific product information within the Sioux Chief ASTM
F1960 product offering.
MATERIALS
No-Lead Brass*
INSTALLATION NOTES
Full installation instructions can be found at www.siouxchief.com. ASTM F1960
connections with PowerPEX® type B tubing must be made with a self-rotating,
power expansion tool. ASTM F1960 connections made in temperatures below
35 ºF with either Sioux Chief PowerPEX® type A or type B tubing should be
conditioned per Sioux Chief installation instructions to allow the tube and ring
to annularly constrict around the sealing barb of the fitting thereby achieving an
air-tight pressure seal. Pressure test all joints before use.
DIMENSIONS per ASTM F1960
½" ¾" 1"
A: Ftg Inside diameter 0.378" min 0.595" min 0.795" min
B: Ftg Upper barb diameter 0.618" min
0.610" max
0.874" min
0.866" max
1.110" min
1.102" max
C: Ftg Lower barb diameter 0.579" min
0.571" max
0.795" min
0.787" max
1.032" min
1.024" max
D: Fitting end length 0.689" min
0.729" max
0.925" min
0.965" max
1.161" min
1.201" max
E: Ring inside diameter 0.633"
+/- 0.003
0.882"
+/- 0.004
1.134"
+/- 0.004
F: Ring wall thickness 0.123"
+/- 0.005
0.123"
+/- 0.005
0.143"
+/- 0.006
G: Ring overall height 0.630"
+/- 0.020
0.866"
+/- 0.020
1.102"
+/- 0.030
* Material is C69300 dezincification and SCC resistant, and is compliant with NSF-61 Annex G and California No Lead Plumbing Law
Sioux Chief Manufacturing Company | P: 1.800.821.3944 | F: 1.800.758.5950 | www.siouxchief.com 6-20
6_WG SERIES
Item Number Series
A
