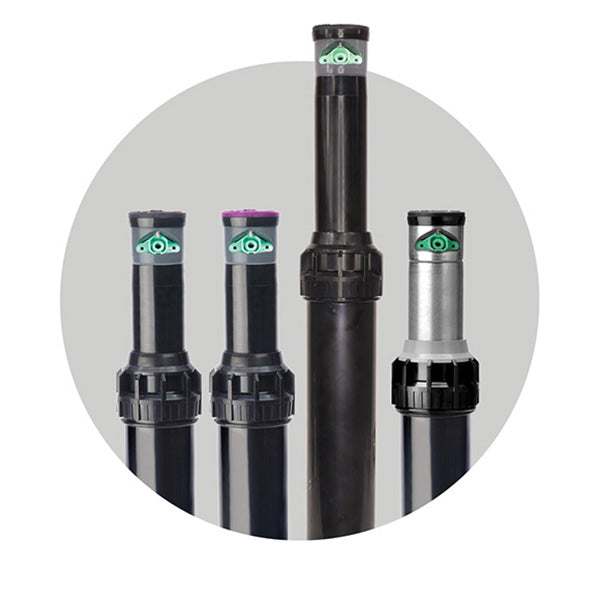

K-Rain ProSport Stainless Steel 4"

ProSport® Rotor Sprinkler: 1" Inlet

Designed specifically for sports turf, with head spacing from 43' to 77' (13-23,5 m). The ProSport® comes standard with a unique triple nozzle configuration, consisting of a primary nozzle for long distance and two secondary nozzles for mid-range and short distance coverage. This nozzle design provides superior, close-in water distribution from 43' to 77' (13,1 to 23,5 m). Available in a high-speed version, ideal for quick wet downs and dust control.

Technical Specifications

• Revolutionary Patented Top Arc Set – Simplified arc set allows for wet or dry adjustment in seconds.
• Triple Nozzle Configuration – Ensures even distribution of water.
• 2 in 1 Adjustable or Continuous Rotation – Provides a full range of adjustment from 40° to a continuous full circle.
• Top Arc Set Degree Markings – Clearly indicates the current watering pattern and simplifies arc set adjustment.
• Arc Memory Clutch – Prevents internal gear damage and returns rotor to its prior setting automatically if nozzle turret is forced past stop.
• Time Proven Patented Reversing Mechanism – Assures continuous reverse and return…over a 35-year history.
• Heavy Duty Rubber Cover and Mud Guard – Protects against physical injury and reduces liability, allows sprinkler to be installed below grade.
• Factory Installed Check Valve – Prevents low head drainage.

Resources

• Product brochure
• Instruction manual
