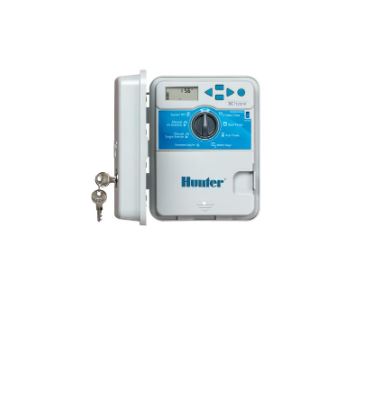

HUNTER XCH-600 CONTROLLER

KEY BENEFITS
• Number of stations:
- 6 or 12 (fixed models)
• 3 power options: ambient-light-compatible solar panel, battery, or AC power
• Stainless steel enclosure protects against vandalism
• 3 programs with 4 start times each and up to 4-hour run times
• Easy Retrieve® Memory backs up the full irrigation schedule
• Delay Between Stations for slow-closing valves or pump recharge
• Seasonal adjustment for quicker schedule adjustments without changing
run times
• Solar Panel provides maintenance-free operation
• Mounts to flat surfaces or steel posts
OPERATING SPECIFICATIONS
• Plastic model operates six 1.5 V AA alkaline batteries
• Stainless steel model operated by six 1.5 V C alkaline batteries
• Stainless steel solar model operates 800 mAh solar panel with charging cell
• Solar panel includes 40' of direct-burial wire
• Controller to solar panel: 100' maximum 18 AWG direct-burial wire
• All models operate optional 120/24 VAC plug-in wall adapter (P/N 526500)
• Operates Hunter DC-Latching Solenoids; see page 88
• Station output: 9 to 11 VDC
• P/MV output: 9 to 11 VDC
• Sensor inputs: 1 (wired rain, freeze, or wind only)
• Approvals: Plastic IP54 (outdoor), Stainless Steel IP24 (outdoor), UL, cUL, FCC,
CE, UKCA, RCM, ISED
• Warranty period: 2 years
