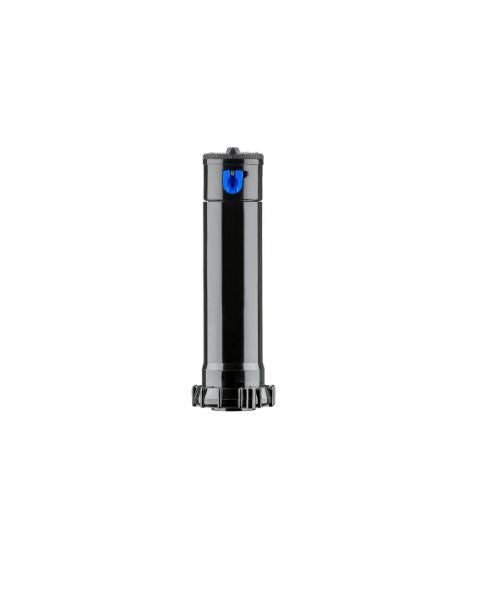

HUNTER PGP SHRUB ROTOR HEAD

KEY BENEFITS
• Patented automatic arc return feature
returns the turret back to the original
arc pattern if vandalized; adjustable arc
from 50° to 360°
• Non-strippable drive mechanism is
protected from damage if turned in the
opposite direction of travel
• Part- and full-circle in one model
for flexibility across landscapes and
reduced inventory
• Headed and slotted setscrew allows
radius adjustment with a Hunter
Wrench or flat-blade screwdriver
• Flat-top nozzles allow fast,
easy insertion
• QuickCheck™ Arc Mechanism for fast
arc adjustment
OPERATING SPECIFICATIONS
• Nozzle choices: 34
• Radius: 17' to 46'
• Flow: 0.36 to 14.8 GPM
• Recommended pressure range:
25 to 70 PSI
• Operating pressure range: 20 to 100 PSI
• Precipitation rate: 0.4 in/hr
approximately
• Nozzle trajectory: standard = 25°,
low-angle = 13°
• Nozzle racks: Blue 1.5 to 8.0, Gray
Low-Angle 2.0 to 4.5, Black 0.50 to 3.0,
Green 6.0 to 13.0, MPR-25, MPR-30,
MPR-35
• Warranty period: 5 years
