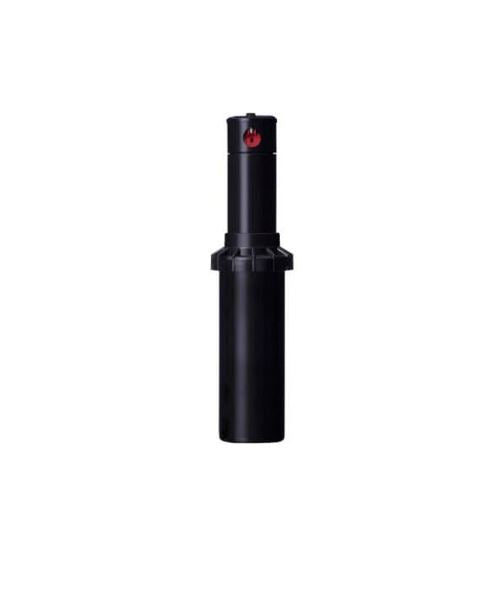

HUNTER PGP-ADJ 4" ROTOR HEAD

KEY BENEFITS
• Three types of nozzles available for various landscapes:
red standard, blue standard, gray low-angle
• Adjustable arc from 40° to 360° to keep water in the appropriate areas
• Factory-installed rubber cover for safety
• Through-the-top arc adjustment for easy installation
• QuickCheck™ Arc Mechanism for fast arc adjustment
OPERATING SPECIFICATIONS
• Nozzle choices: 27
• Radius: 22' to 52'
• Flow: 0.5 to 14.1 GPM
• Recommended pressure range: 25 to 70 PSI
• Operating pressure range: 20 to 100 PSI
• Precipitation rate: 0.4 in/hr approximately
• Nozzle trajectory: standard = 25°, low-angle = 13°
• Warranty period: 2 years
FACTORY-INSTALLED OPTIONS
• Red 5 to 8 Nozzles, Blue 1.5 to 4.0 Nozzles
