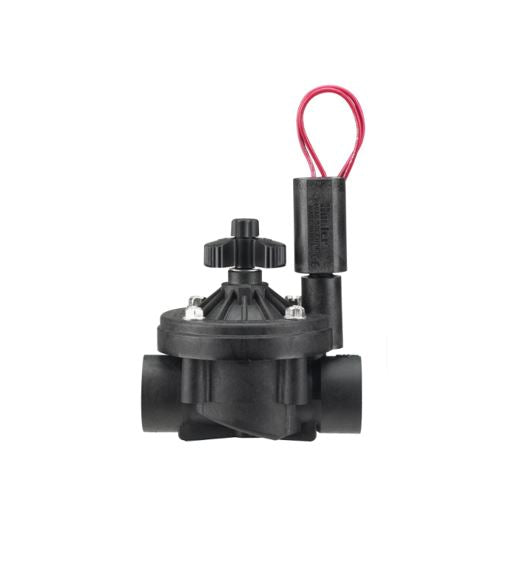

HUNTER ICV GLOBE VALVE 1"

KEY BENEFITS
• Optional Filter Sentry® Mechanism scours the filter screen in dirty water
conditions
• External/internal manual bleed allows for quick and easy
activation at the valve
• Glass-filled nylon construction provides high pressure rating and reliability
• Double-beaded diaphragm seal design ensures leak-free performance
• Fabric-reinforced EPDM diaphragm and seat ensure greater
performance in all water conditions
• Captive bonnet screws eliminate the possibility of lost parts
during disassembly
• Triple-tool bonnet screws are compatible with standard or
Phillips screwdrivers as well as a nut driver
• Encapsulated solenoid with captive plunger used on every
Hunter valve provides hassle-free service
• Flow control maximizes efficiency and prolongs the life of the system
USER-INSTALLED OPTIONS
• Accu Sync® Pressure Regulator at the valve
• DC-Latching Solenoid for battery-operated controllers: P/N 458200
• Filter Sentry Mechanism easily added to an installed valve*
• Solenoid conduit cover: P/N 464322
FACTORY-INSTALLED OPTIONS
• LS: Valve without solenoid
• DC: DC-Latching Solenoid for battery-operated controllers; see page 88
• FS: Filter Sentry
• FS-R: Reclaimed option with Filter Sentry Mechanism, purple control knob,
and purple, chlorine-resistant diaphragm (available only on 11/ 2" and 2" models)
OPERATING SPECIFICATIONS
• Flow:
- ICV-101G: 0.1 to 40 GPM
- ICV-151G: 0.1 to 150 GPM
- ICV-201G: 0.1 to 200 GPM
- ICV-301: 0.1 to 300 GPM
• Recommended pressure range: 20 to 220 PSI
• Temperature rating: 150°F
• Warranty period: 5 years
SOLENOID SPECIFICATIONS
• 24 VAC solenoid
- 350 mA inrush, 190 mA holding, 60 Hz
- 370 mA inrush, 210 mA holding, 50 Hz
