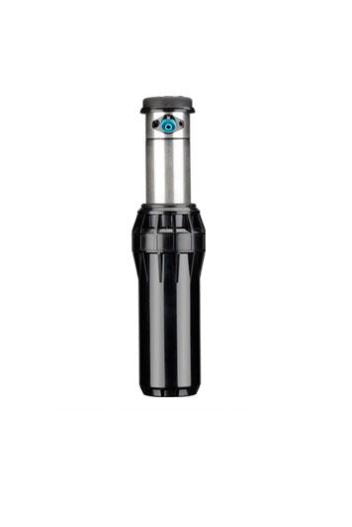

HUNTER I-40-04-SS ROTOR HEAD

KEY BENEFITS
• Patented automatic arc return feature
returns the turret back to the original
arc pattern if vandalized; adjustable arc
from 50° to 360°
• Non-strippable drive mechanism is
protected from damage if turned in
the opposite direction of travel
• Part- and full-circle in one model for
flexibility across landscapes and reduced
inventory
• Color-coded nozzles make
identification easy
• Available opposing nozzle model for
even watering in full-circle applications
(I-40-ON model)
• Drain Check Valve prevents low-head
drainage (up to 15' of elevation)
OPERATING SPECIFICATIONS
• Nozzle choices: 12
• Radius I-40: 44' to 69'
• Radius I-40-ON: 52' to 76'
• Flow I-40: 7.6 to 29.5 GPM
• Flow I-40-ON: 13.0 to 33.7 GPM
• Recommended pressure range:
40 to 100 PSI
• Operating pressure range: 40 to 100 PSI
• Precipitation rate: 0.4 in/hr
approximately
• Nozzle trajectory: standard = 25°
• Warranty period: 5 years
