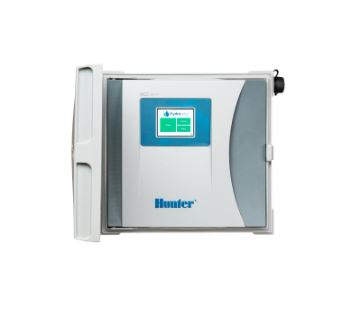

HUNTER HCC-800 PLASTIC

KEY BENEFITS
• Number of stations:
- Conventional: 8 to 38 (plastic),
8 to 54 (metal and pedestal)
- With two-wire EZDS: Up to 54
(all enclosure options)
- With Wireless Valve Link (WVL): up
to 54 (all enclosure options)
• Standard programming option allows
for 6 independent irrigation programs
and 6 start times per program
• Any 2 programs can operate
simultaneously to improve irrigation
efficiency
• 2 sensor inputs available for use with
any Clik Sensors and HC Flow Meter
• 1 P/MV output for pump start relay and
master valve activation
• Wi-Fi enabled for quick connection
to Hydrawise Software
• 31/4" full-color touchscreen display
for Wi-Fi setup, zone testing, and
offline programming at the
control panel
• Built-in milliamp sensor for wire
fault detection and alerts
OPERATING SPECIFICATIONS
• Transformer input: 120/230 VAC
• Transformer output (24 VAC): 1.4 A
• Controller max. current draw: 1.2 A
• Station output (24 VAC): 0.56 A
• P/MV output (24 VAC): 0.56 A
• 2.4 GHz (only) Wi-Fi router
compatible, 802.11 b/g/n 20 MHz
• Run a maximum of 4 Hunter solenoids
1.04 A at once
• Supported security protocols: WPA/
WPA2 Personal (only) TLS
• Approvals: Plastic Wall Mount IP55
(outdoor), Plastic Pedestal IP24
(outdoor), UL, cUL, FCC, CE, UKCA,
RCM, ISED
• Warranty period: 2 years
