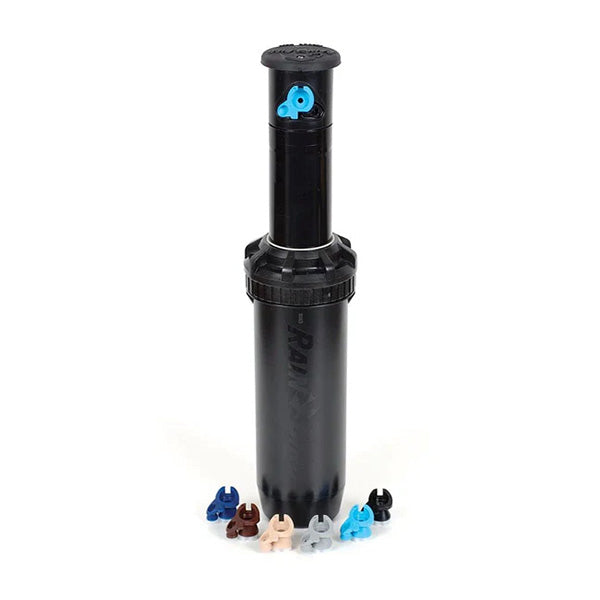

4" Falcon 6504 Rotor Pop-Up Sprinkler w/ SAM

Falcon® 6504 Series: Reliable and Economical

Features

• Ratcheting stem just like standard spray bodies
• 3-port, color-coded Rain Curtain nozzles for optimal long range,midrange, and close-in watering
• SAM Seal-A-Matic check valve
• Heavy-duty, stainless steel retract spring ensures positive pop-down

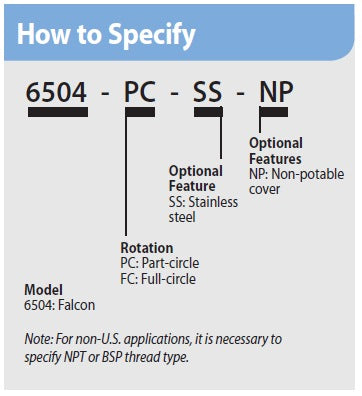

• 5 year warranty Options

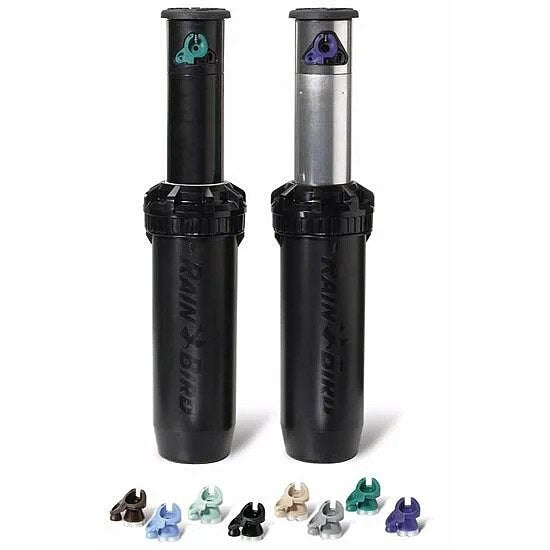

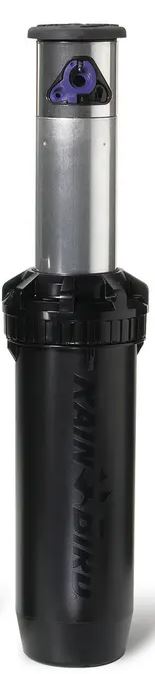

• Stainless steel (SS) riser helps deter vandalism on public turf areas
• Purple cover (NP) for non-potable systems Operating Specifications

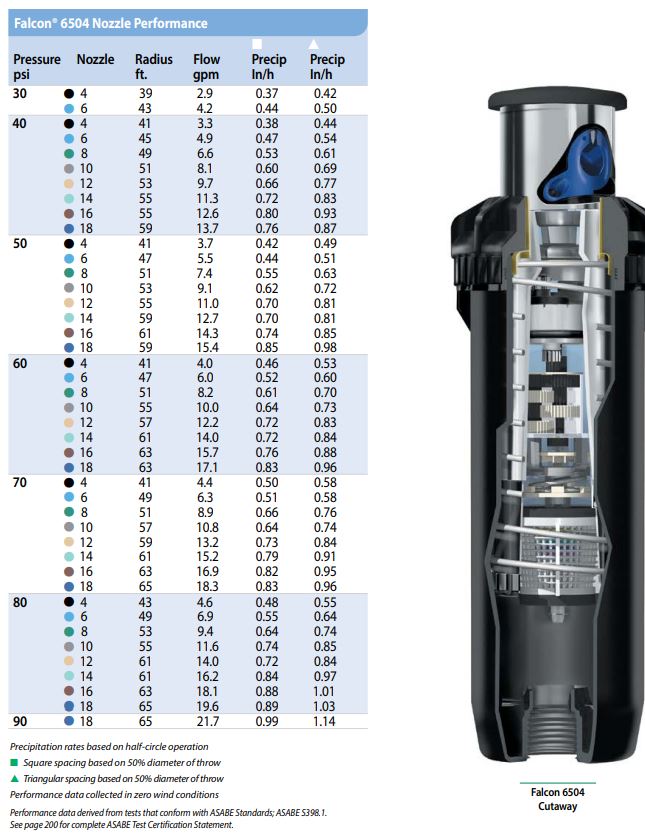

• Reversing full- and part-circle adjustment from 40-360°
• Precipitation rate: 0.37 to 1.26 inches per hour (9 to 33 mm/h)
• Radius: 37 to 65 feet (11.3 to 19.8 m)
• Pressure: 30 to 90 psi (2.1 to 6.2 bar)
• Flow: 2.9 to 21.7 gpm (0.66 to 4.93 m3 ⁄h; 10.8 to 82.2 l/m)
• 1" female NPT or BSP threaded inlet
• SAM Seal-A-Matic™ check valve holds up to 10 feet (3.1 m) of elevation change
• Rain Curtain™ Nozzles: Included with rotor, other sizes available upon request; 10-grey, 12-beige, 14-light green, 16-dark brown, 18-dark blue
• Nozzle outlet trajectory is 25°
