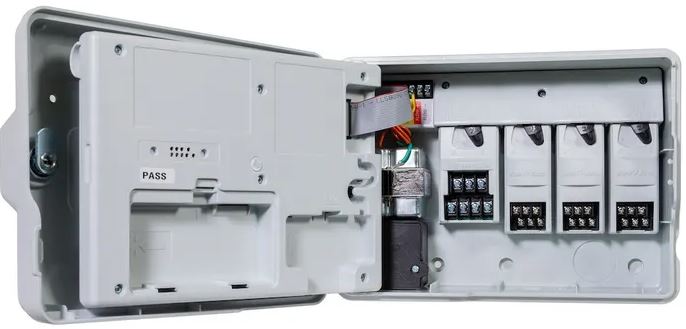

ESP4ME3 - Indoor/Outdoor 120V Irrigation Controller (LNK WiFi Compatible)

Features

• Upgradeable for WiFi-based remote monitoring and control via iOS and Android mobile devices (with LNK2 WiFi Module sold separately).
• Internet-based weather information can be used to make daily adjustments to the irrigation schedule, saving up to 30% in water (with LNK2 WiFi Module sold separately).
• Back-lit LCD display for improved visibility in low-light and direct sun conditions
• Master valve/pump start circuit
• Non-Volatile (100 year) storage memory
• Remotely Programmable under 9V battery power (not included)
• Program based scheduling allows 4 individual programs with 6 independent start times per program for 24 total start times
• Watering schedule options: By days of week, ODD calendar days, EVEN calendar days, or Cyclic (every 1 – 30 days) Advanced Features
• Advanced diagnostics and short detection with LED alert
• Contractor Default™ Program Save/Restore saved program(s)
• Rain Sensor bypass by Station
• Delay Watering up to 14 days (applies only to stations not set to ignore Rain Sensor)
• Manual Watering option by program or station
• Seasonal Adjust applied to all programs or individual program
• Adjustable delay between valves (default set to 0)
• Master Valve on/off by station
• Built-in flow-sensing capabilities
• Easy to install indoors or outdoors with pre-installed power cord

Operating Specifications

• Station timing: 1 minute to 6 hours
• Seasonal Adjust: 5% to 200%
• Max operating temperature: 149°F (65°C)

Electrical Specifications

• Input Required: 120VAC ± 10%, 60Hz (International models: 230/240VAC ± 10%, 50/60Hz)
• Master Valve/Pump Start Relay
• Operating Voltage: 24VAC 50/60Hz
• Max Coil Inrush: 11VA
• Max Coil Holding: 5VA - Idle/Off power draw 0.06 amps at 120VAC
• Power back-up not required. Nonvolatile memory permanently saves the current programming and a 10 year life lithium battery maintains the controllers time and date during power outages.

Resources

• ESP-ME3 Advanced User Manual
• ESP-ME3 Technical Specifications
• ESP-ME3 Advanced Residential Irrigation Control
