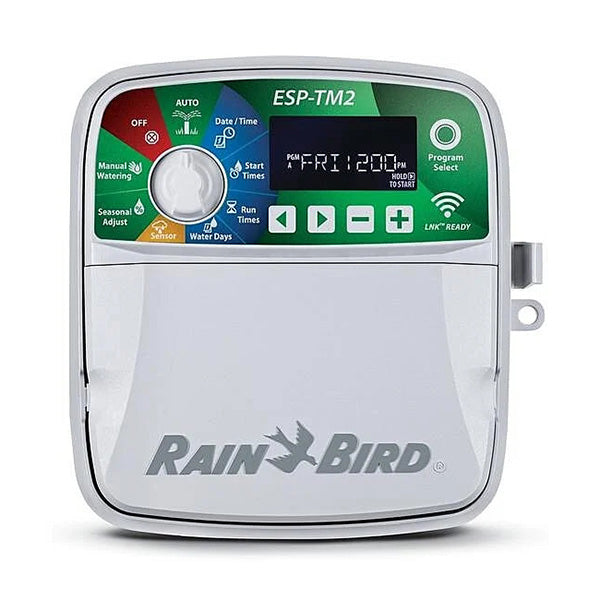

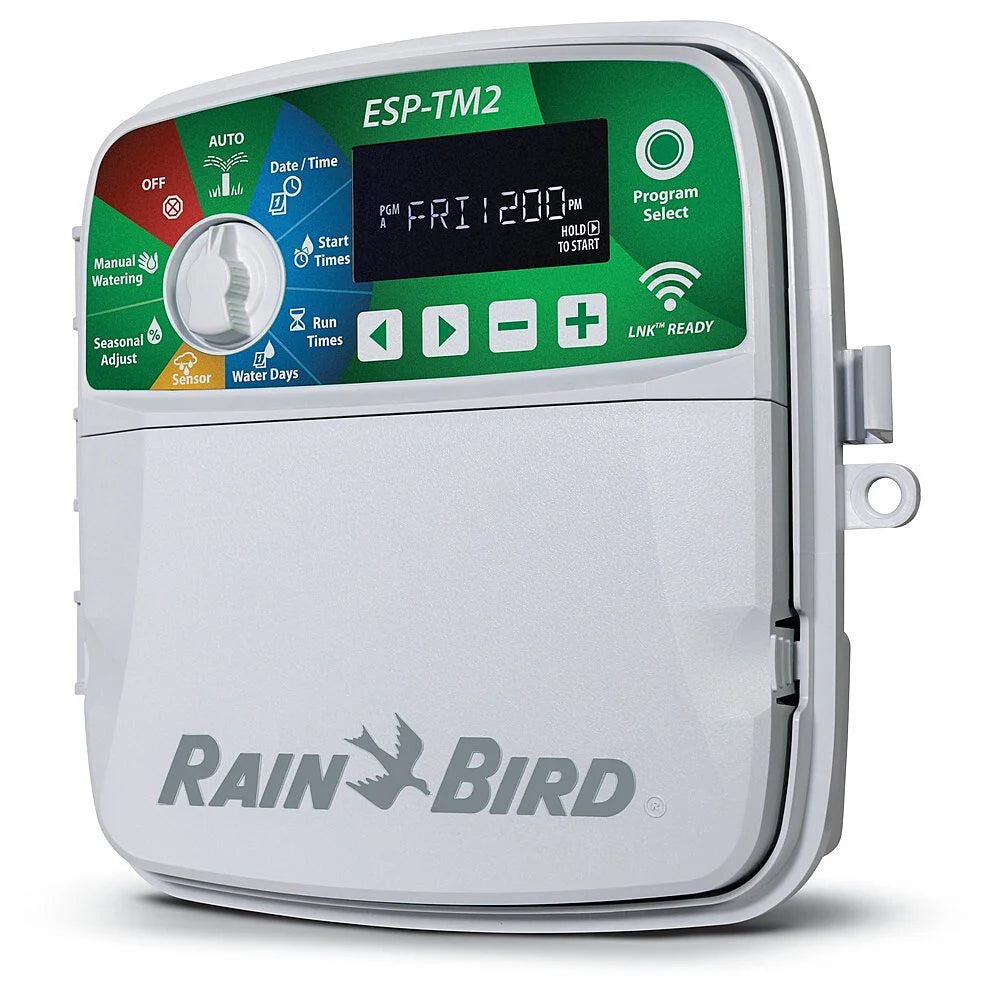

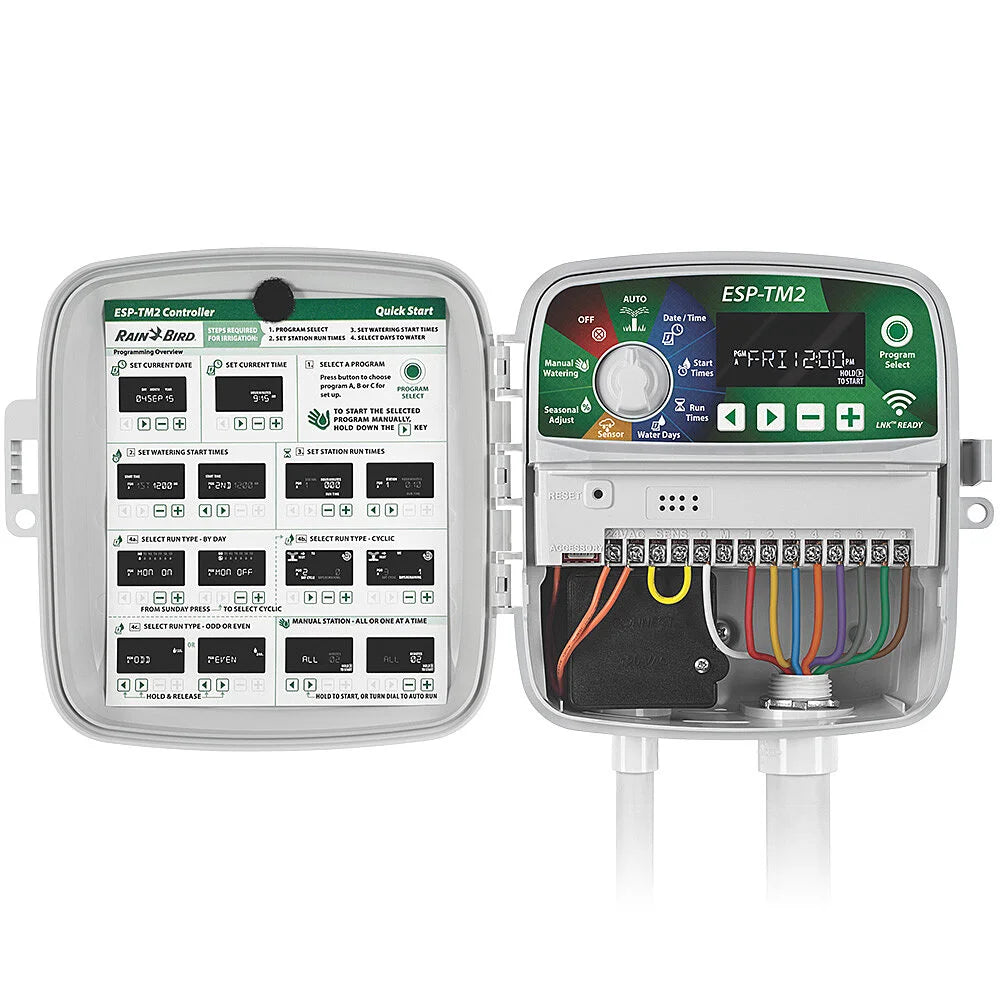

ESP-TM2 - 12 Station Indoor/Outdoor 120V Irrigation Controller (LNK WiFi-compatible)

Features

• Upgradeable for WiFi-based remote monitoring and control via iOS and Android mobile devices (with LNK2 WiFi Module sold separately).
• Internet-based weather information can be used to make daily adjustments to the irrigation schedule, saving up to 30% in water (with LNK2 WiFi Module sold separately).
• 4, 6, 8, and 12 station models to meet small or large residential irrigation needs
• Set Permanent Days Off per program to ensure watering never occurs on days when maintenance crews are on site (for Odd/Even/ Cyclic schedules)
• Easy to install indoors or outdoors with pre-installed power cord
• Quick programming in just 3 steps for ease of setup
• 3 available programs with up to 4 start times for each program to meet the needs of varied landscapes • One-touch manual watering capability for ease of use
• Large back-lit LCD display for improved visibility in low-light and direct sun conditions
• Contractor Default™ allows you to easily save and restore your custom schedule
• Delay Watering up to 14 days and automatically resume watering after the set delay has elapsed
• Bypass Rain Sensor for any station gives you the ability to customize which stations react to a rain sensor
• Seasonal Adjust by program allows you to easily reduce or increase watering by program Specifications • Operating Temperature: Up to 149°F (65°C)
• Storage Temperature: -40°F (-40°C) to 150°F (66°C)
• Operating Humidity: 95% max @ 50°F to 120°F (10°C to 49°C) noncondensing environment Electrical Specifications
• Input required: 120VAC (±10%) @ 60Hz
• Output: 1A at 24VAC
• Master Valve/Pump Start Relay
• External battery back-up not required. Nonvolatile memory permanently saves the current programming and a 10 year life lithium battery maintains the controllers time and date during power outages

Certifications

• cULus, FCC Part 15b, CAN ICES-3(B)/NMB-3(B), NOM-001-SCFI-1993, CE. For current certifications visit: www.rainbird.com/esptm2

Dimensions

• Width: 7.92 in. (20.1 cm)
• Height: 7.86 in. (20.0 cm)
• Depth: 3.51 in. (9.0 cm)

Models

• TM2-4-120V: 4-station 120VAC
• TM2-6-120V: 6-station 120VAC
• TM2-8-120V: 8-station 120VAC
• TM2-12-120V: 12-station 120VAC

Accessories

• LNK2WIFI: LNK2 WiFi Module for remote control and notification via iOS or Android device
• WR2 Series Wireless Rain + Freeze Sensors
• RSD Series Rain Sensors
