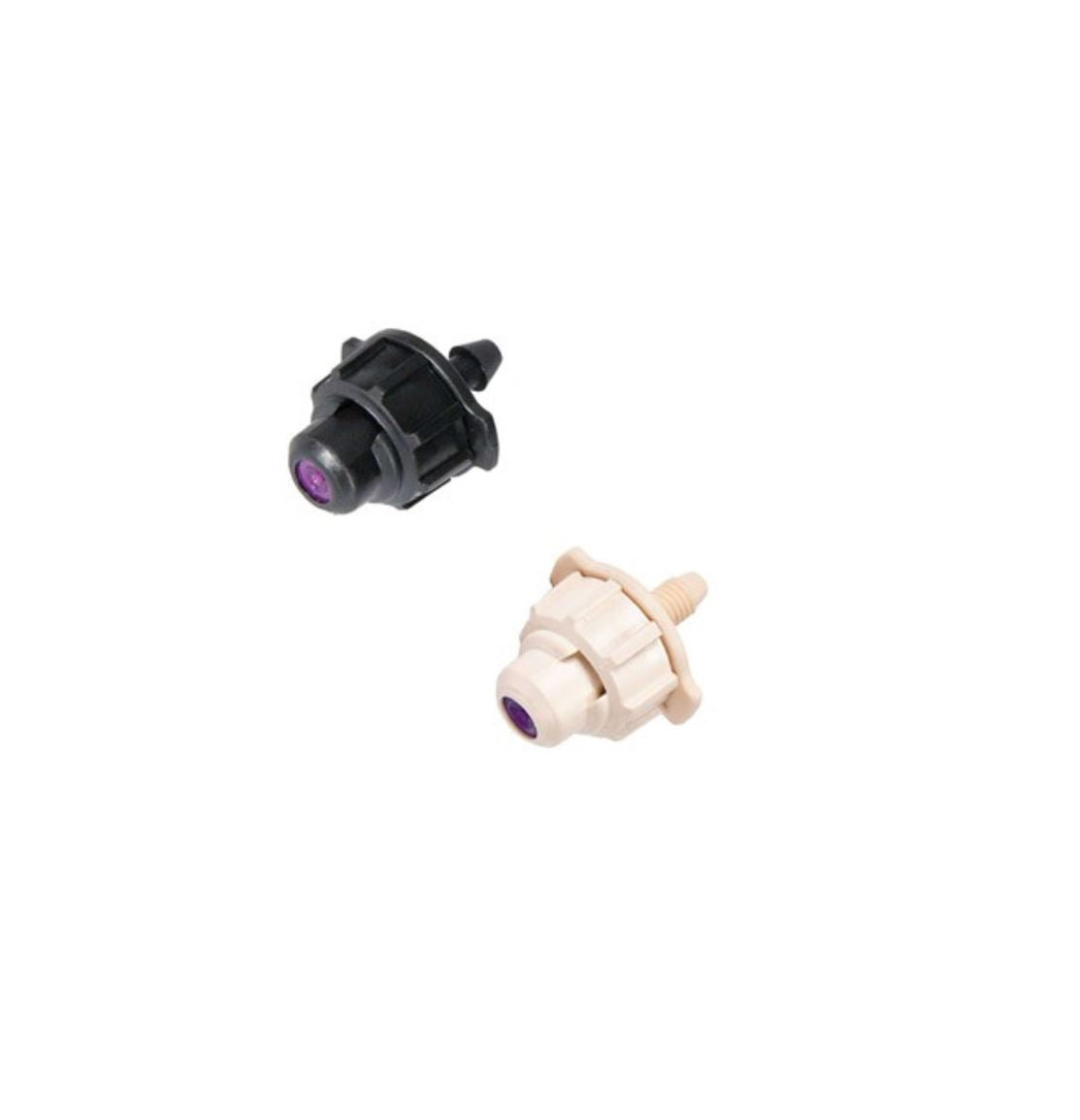

DIG’s EXL Series Low-Flow 10-32 thread and 1/4″ barbed Foggers
DIG’s EXL Series Low-Flow 10-32 thread and 1/4″ barbed Foggers
Barbed Foggers
DIG’s EXL Series Low-Flow 10-32 thread and 1/4″ barbed Foggers operate at a pressure range of 30 to 80 PSI to produce micro-sized droplets, supporting optimal cooling or humidifying conditions by reducing temperature and increasing humidity. The fogger’s vortex design spins incoming water into a very fine mist, with higher incoming pressure giving smaller and finer droplets. Use where overhead cooling or misting is desired, or for plants that require constant moisture.
Key physiological processes such as photosynthesis are compromised when temperatures reach 95°F to 104°F. With the increasing severity and duration of heat waves, using EXL foggers to cool fruit trees and vines under these adverse conditions may result in lowering temperature by up to 20°F and improving resilience in future similar events.
Features
- Supports optimal cooling or humidifying conditions by reducing temperature and increasing humidity
- Incorporates a vortex design that swirls water droplets into a fine mist
- The EXL foggers can influence canopies and foliage temperatures by decreasing temperatures up to 20°F
- Operates in a normal pressure range of 35 to 80 PSI with high droplet uniformity
- Produces a droplet size of 50 to 100 microns (100 m at 50 PSI)
- Available in four color-coded Interchangeable nozzles
- Modular, lightweight and easy to maintain, configure and install
- Three-part construction with O-ring for a tight seal
- Available with 11/4″ barbed elbow, /4″ barb, 10-32 thread and on 1/2″ FNPT,
- Manufactured from superior durable plastics with UV protection for extended life operation
-
Specifications
- Flow rate: .8 to 3 GPH (3 to 11.3 L/H)
- Operating pressure: 35 to 80 PSI (2.4 to 5.5 BAR)
- Nominal flow rate at 50 PSI (3.5 BAR)
- Pattern: 360°
- Recommended spacing: 4' to 5' apart (1.2 m to 1.5 m)
- Installation mounting: above canopy, in an upright position
- Trajectory angle: approximately 70°
- Average droplet size is 50-100 microns
- Inlet size: 1/4" (4 mm) barb, 10-32 thread, or press-fit configuration
- Body color: beige or black
- Materials: high-impact plastic
- Filter requirements: flow up to 1.5 GPH (6 LPH) minimum of 200 mesh (80 microns), 2 GPH (8 LPH) and up to 155 mesh (100 microns)
