APOLLO BRASS GATE VALVES (LEADED)

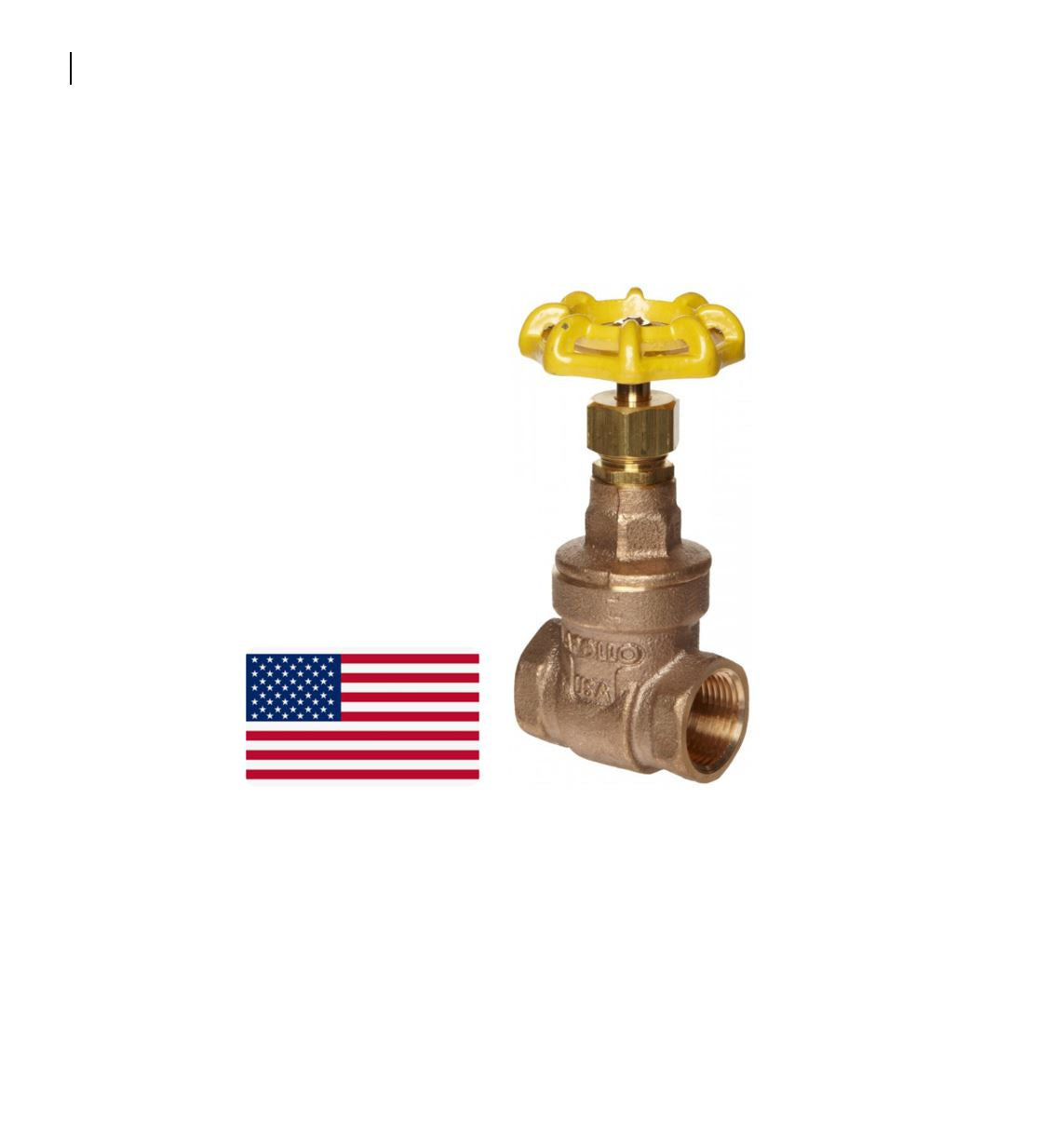

The Apollo® Model 102T (30 Series) Gate Valve provides a cost effective “Made in the USA” alternative to globally sourced multi-turn valves. These valves are cast, machined, assembled, and tested in South Carolina. The Apollo® gate valve is ideal for use in a wide variety of plumbing and heating applications including building service piping systems.

• Full Port
• Guided Solid Bronze Disc
• Adjustable Graphite Stem Packing
• Dezincification Resistant
• All Bronze Construction
• 100% Factory Tested
• Screw-in Bonnet
• Malleable Iron Rugged Hand Wheel
• Back Seat Protection
• 100% Cast, Machined and Assembled in the USA
• ARRA Compliant

PERFORMANCE RATING
• Saturated Steam:
125 psi (8.6 Bar) to 353°F(178°C)
• Cold Working Pressure:
200 psi (13.8 Bar) at 100°F
• Temperature Range*: -20°F to 406°F
* Valves should be in open position to allow complete
drainage during freezing conditions.
APPROVALS
• MSS SP-80 - Bronze Gate, Globe, Angle & Check
Valves - Type 1
• ASME B1.20.1 - Pipe Threads, General Purpose (Inch)
• CRN 0C14667.5
