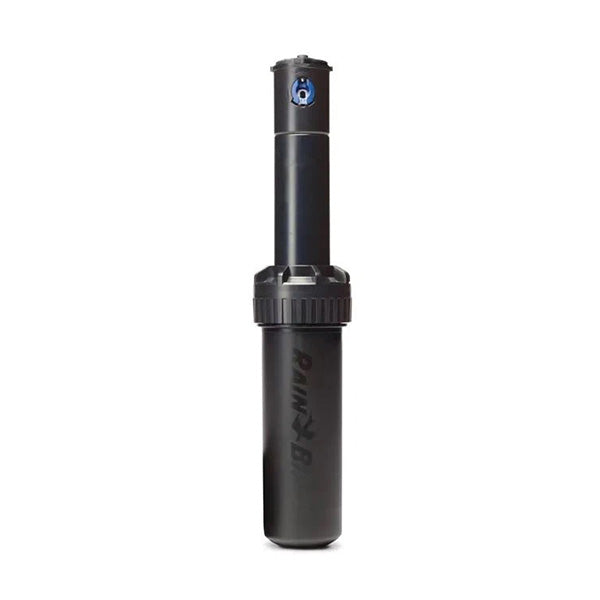

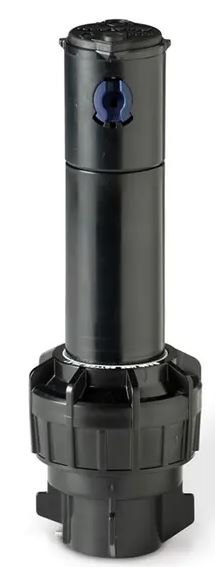

4" 5000 Plus Series Part/Full-Circle Pop-Up Rotor with SAM Check Valve

4" 5000 Plus Series Part/Full-Circle Pop-Up Rotor with SAM Check Valve

Regular price $17.70 USD
Regular price Sale price $17.70 USD
Sale Sold out

5000 Series: Engineered to be the Industry’s Most Reliable and Best Performing Rotor.


  • Oversized wiper seal prevents leaks and protects internals from debris
  • Rain Curtain™ nozzles deliver even distribution over the entire radius including large wind resistant droplets and gentle close-in watering resulting in greener turf using less water
  • A history of proven performance and reliability tested in millions of installations
  • Self-flushing arc adjustment port that prevents buildup of debris
  • 5 year trade warranty Operating Specifications

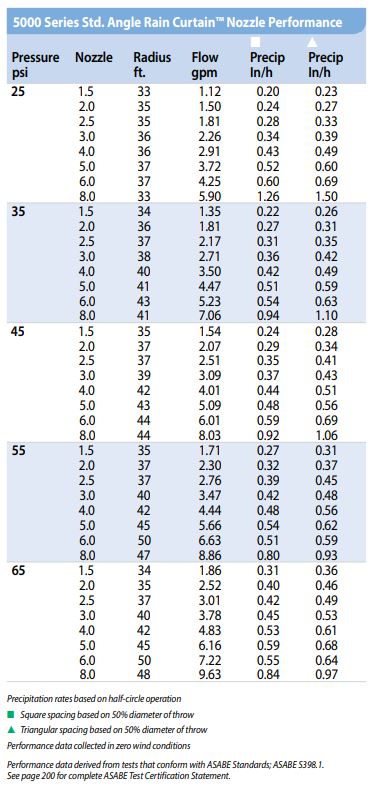

  • Precipitation rate: 0.20 to 1.50 in/hr (5 to 38 mm/h)
  • Radius: 25 to 50 feet (7.6 to 15.2 m)
  • Radius may be reduced up to 25% with radius reduction screw
  • Pressure: 25 to 65 psi (1.7 to 4.5 bar)
  • Flow Rate: 0.76 to 9.63 gpm (3.0 to 36.6 l/m; 0.17 to 2.19 m3 /h)
  • Reversing full- and part-circle adjustment from 40° - 360°
  • Standard nozzle trajectory of 25°. Low angle nozzle trajectory of 10°. MPR nozzles varied nozzle trajectory between 12° - 25°. Optional Features
  • Plus (+) Flow shutoff – “The Green Top.” Reduce downtime on jobs by flushing and nozzling rotors without running back and forth to the controller or valves
  • PRS (R) with flow optimizer technology. The 45 psi pressure regulator lowers water bills, provides exact flow of each rotor, equalizes lateral lines, and eliminates misting and fogging
  • SAM Seal-A-Matic™ check valve holds up to 7 feet (2.1 m) of elevation change
  • Stainless steel (SS) riser helps deter vandalism on public turf areas (available on 4 and 6" models)
  • Purple cover (NP) for non-potable system

Pop-Up Height: 4 in Inlet: 3/4 in Coverage Radius: 25-50 ft
