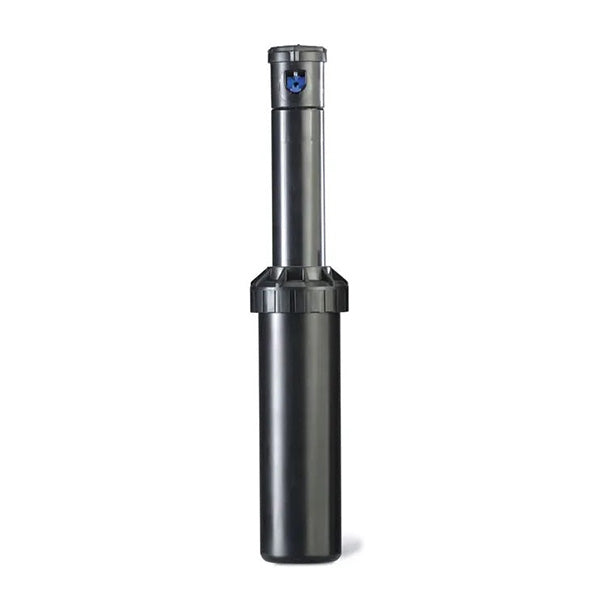

4" 3500 Series Part/Full-Circle Rotor Pop-Up Sprinkler

3500 Series Compact Residential Rotor. Big on Value and Convenience.

Features

• Rain Curtain™ nozzles deliver even distribution over the entire radius including large wind resistant droplets and gentle close-in watering resulting in greener turf using less water
• Oversized wiper seal prevents leaks and protects internals from debris
• Arc adjustment through the top of the rotor requiring only a flat-blade screwdriver
• 3 year trade warranty Options
• SAM Seal-A-Matic™ check valve holds up to 7 ft (2.1 m) of elevation change Operating Specifications

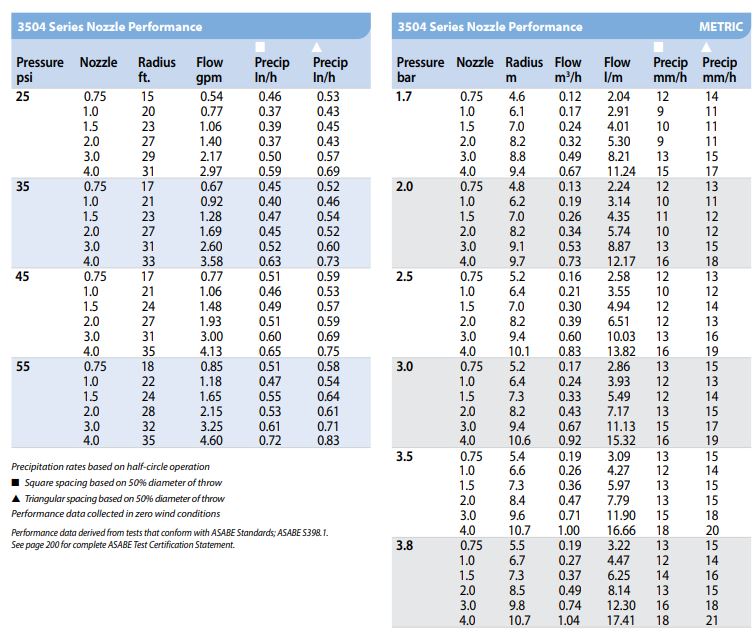

• Precipitation rate: 0.37 to 0.83 inches per hour (9 to 21 mm/h)
• Radius: 15 to 35 feet (4.6 to 10.7 m)
• Radius may be reduced up to 25% with radius reduction screw
• Pressure: 25 to 55 psi (1.7 to 3.8 bar)
• Flow rate: 0.54 to 4.6 gpm (2.0 to 17.4 l/m)
• 1 ⁄2" NPT female bottom threaded inlet
• Reversing full- and part-circle adjustment 40° - 360°
• Nozzle trajectory of 25° Models
• 3504-PC: 4" part/reverse full circle
• 3504-PC-SAM: 4" part/reverse full circle with SAM
