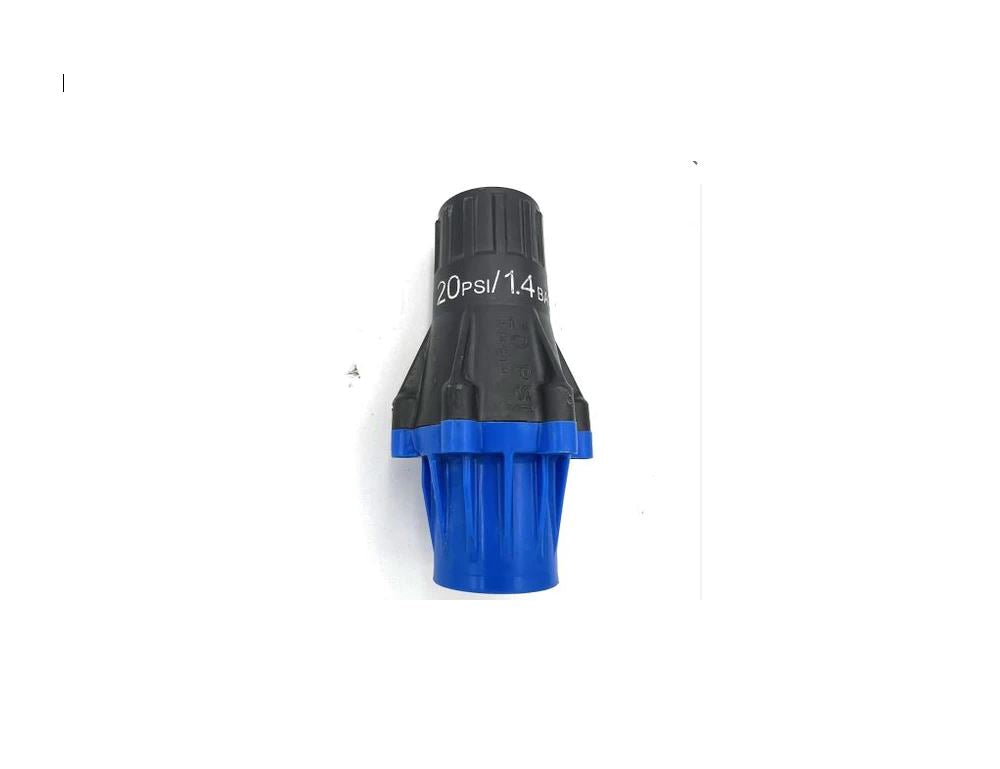

3/4" LOW FLOW PRESSURE REGULATOR

Nelson’s universal flo and hi flo regulators
The function of a pressure regulator is to fix a varying inlet
pressure to a set outlet pressure, regardless of changes in
the system pressure due to hydraulic conditions, elevation
changes, pumping scenarios, etc. The benefits include
a uniform depth of water application, controlled sprinkler
performance (droplet size and throw distance), and flexibility
in system operation.
features & benefits:
SINGLE STRUT SEAT Design standard with universal
flo. The new “single-strut” technology in the Universal Flo regulator
minimizes “hair-pinning”of debris around the inlet seat, providing more
plug resistance for systems operating in dirty water condtions.
Patented Dampening System. The patented o-ring dampening
system of all Nelson pressure regulators handles severe pressure
surges to withstand water hammer.
wide Flow Range. The Nelson Universal Pressure Regulator has
a flow up to 12 GPM (2.7 M3
/H) at 15 PSI (1.0 BAR) and above.
Extended performance and precision Accuracy.
Precision components coupled with an internally lubricated o-ring
minimize frictional drag and hysteresis.
Precision Manufactured. Made of the toughest chemically
resistant materials. 100% tested for accuracy.
universal 3000 series connection option. Integral adapter
connects directly into all Nelson 3000 Series Pivot Sprinklers and
creates an easy to assemble, economical pivot sprinkler package.

UNI-FLO REGULATORS CATALOG
