1800 Series Spray Head - No Nozzle

1800® Series, the #1 irrigation spray head in the world.

Features:

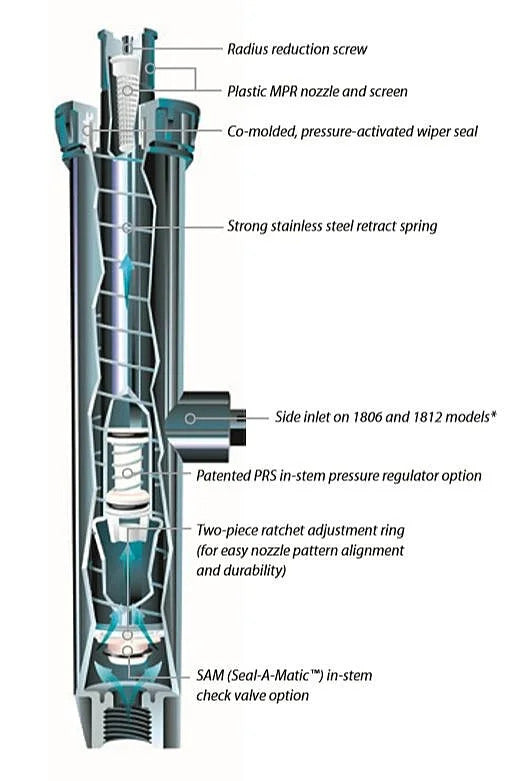

• Co-molded wiper seal provides unmatched resistance to grit, pressure and the environment • Constructed of time-proven UV-resistant plastic and corrosion resistant stainless steel parts, ensuring long product life
• Precision controlled flush at pop-down clears debris from unit, assuring positive stem retraction in all soil types • Two-piece ratchet mechanism allows easy nozzle pattern alignment and provides added durability
• Five Year Trade Warranty Operating Range • Spacing: 2.5 to 24 feet (0.8 to 7.3m)**
• Pressure: 15 to 70 psi (1.0 to 4.8 bar) Specifications
• Flow-by: 0 gpm at 8 psi (0.6 bar) or greater; 0.10 gpm (0.02 m3 /h; 0.36 l/m) otherwise Dimensions/Models
• 1 ⁄2" NPT female threaded inlet

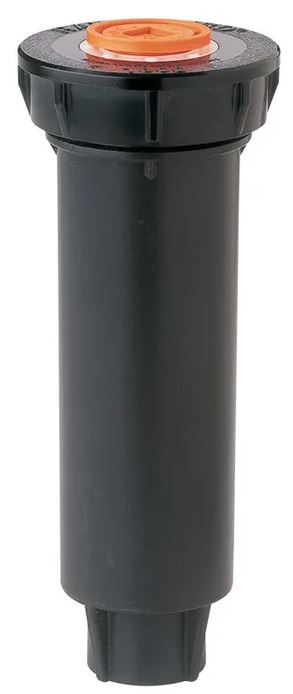

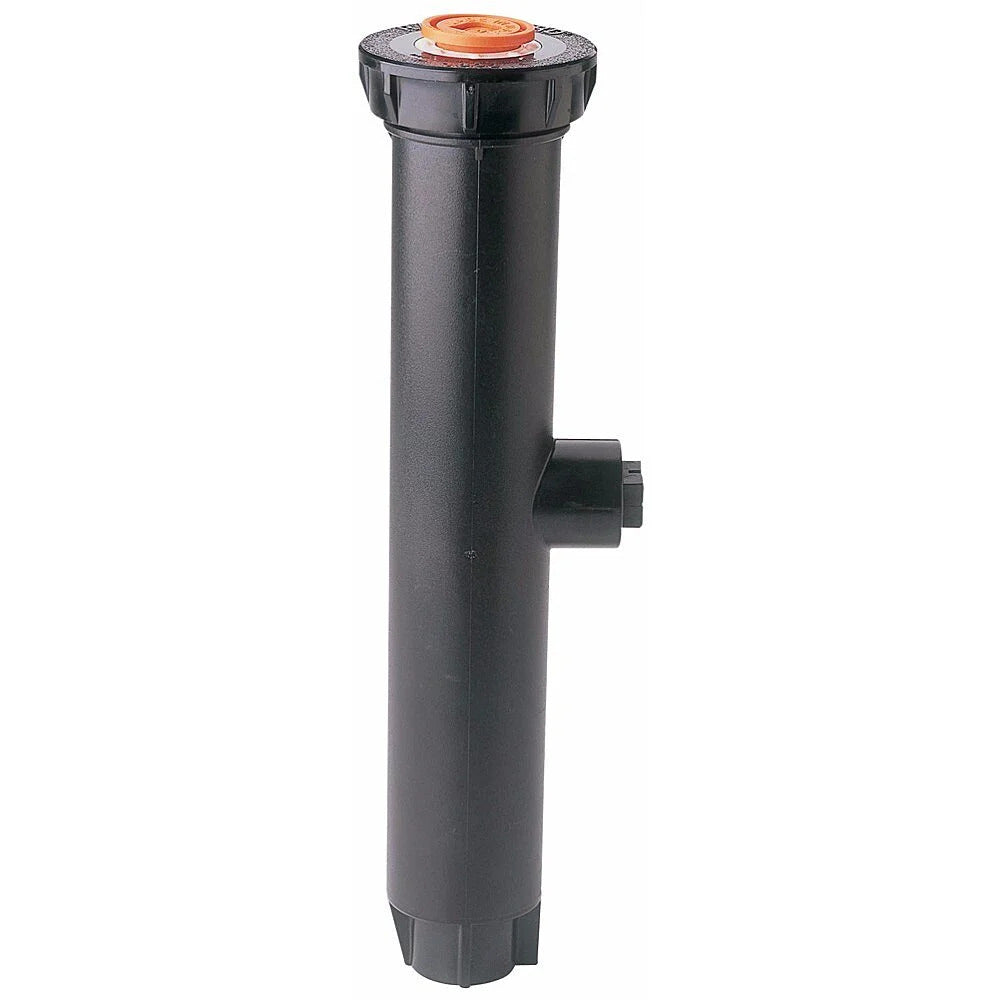

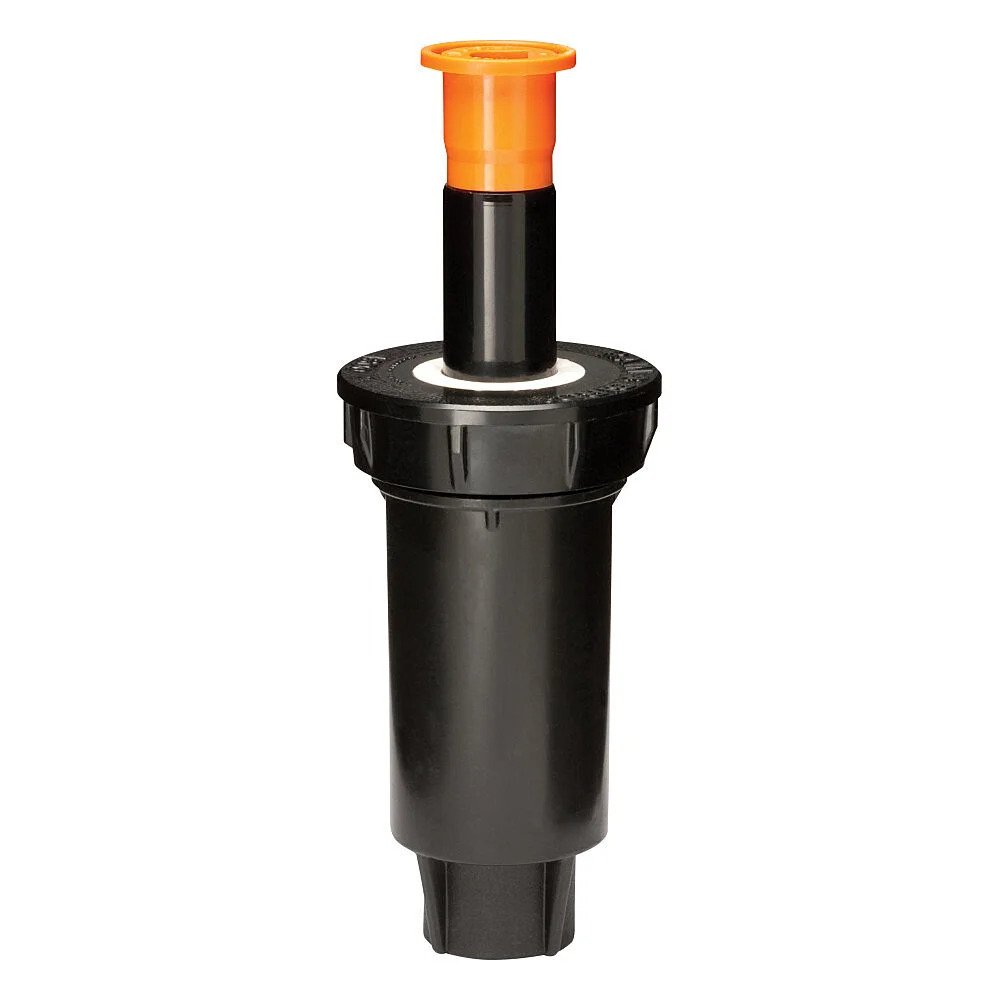

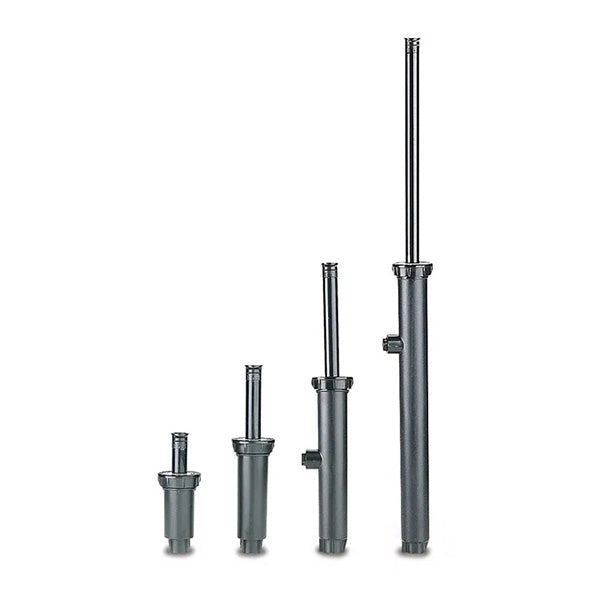

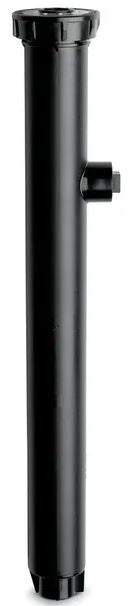

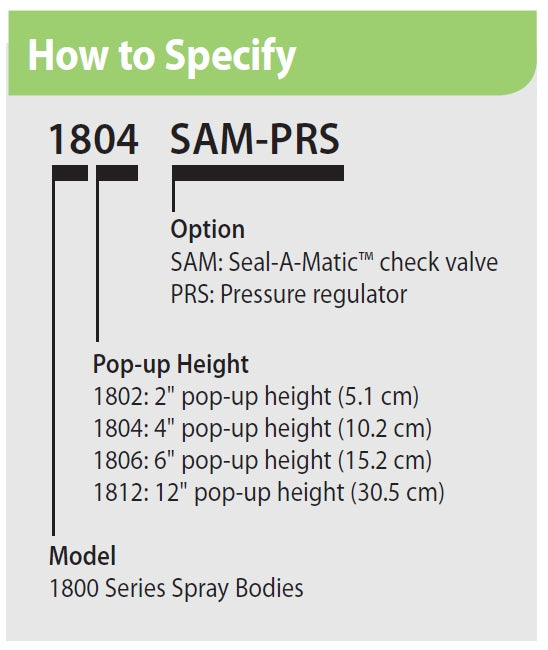

• Models and height: - 1802: 4" (10.2 cm) body height; 2" pop-up height (5.1 cm) - 1804: 6" (15.2 cm) body height; 4" pop-up height (10.2 cm) - 1806: 93 ⁄8" (23.8 cm) body height; 6" pop-up height (15.2 cm) - 1812: 16" (40.6 cm) body height; 12" pop-up height (30.5 cm) • Exposed surface diameter: 21 ⁄4" (5.7 cm)
