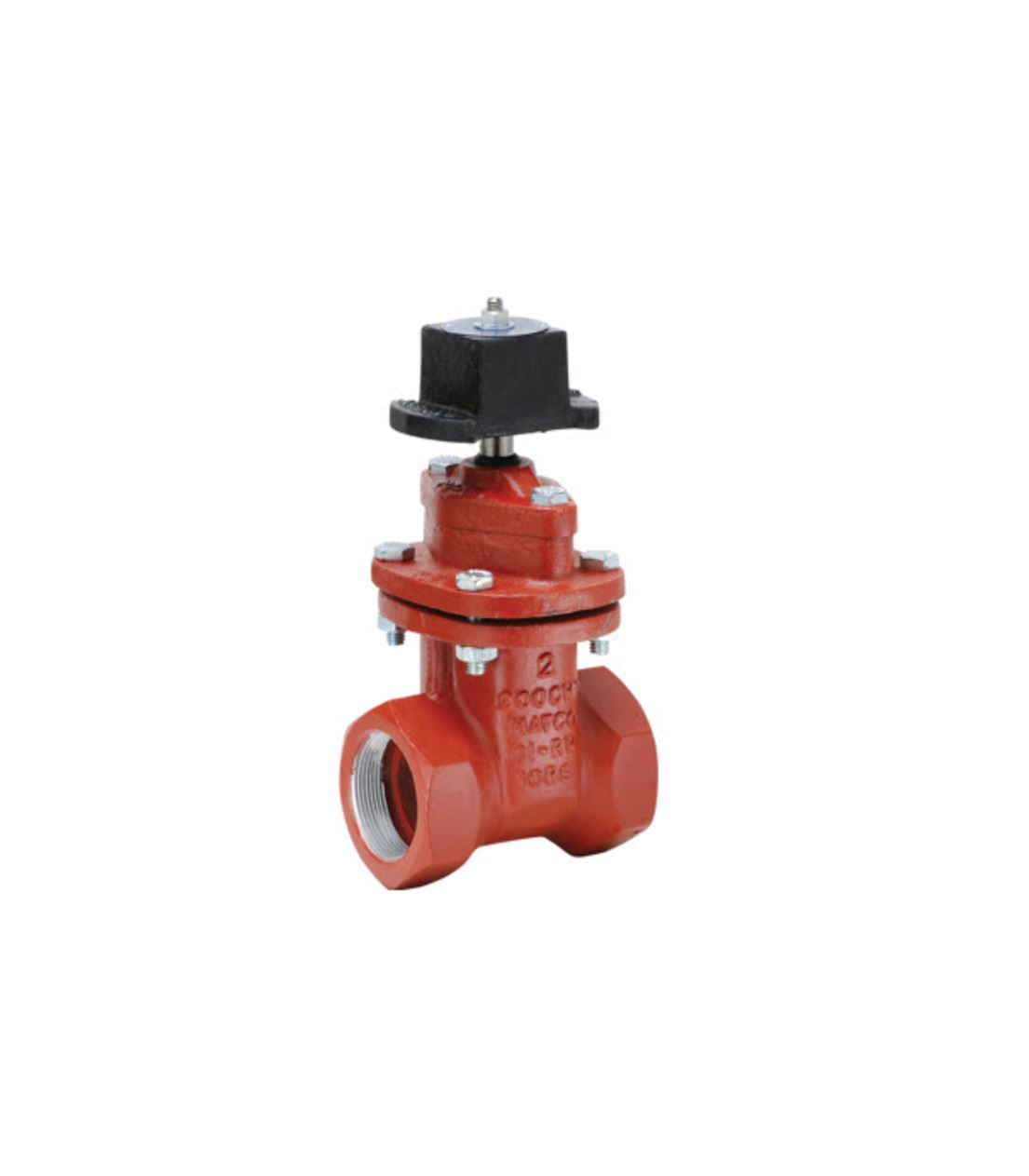

10RS Threaded Cast Iron Gate Valve

***PRODUCT NOT SOLD ONLINE***

    PLEASE CALL STORE (541-716-0352) OR EMAIL INFO@ONSITESUPPLYHOUSE.COM FOR A SHIPPING QUOTE-

• Gate Valve-Threaded
• 200 CWP-Max. Temp. 140 Deg. F.
• C.I. Body
• Resilient Wedge
• Non Rising 304 S.S. Stem
• Full Port Flow
• Epoxy Coating
• ASTM A126 Class B
• Threaded Ends Conform to ANSI B1.20.1
• Op Nut Standard / Handwheel Optional
• Sizes 2" - 6"

Material Specifications

No.	Part			Material
1	Body			Cast Iron A 126 Class B
2	Bonnet			Cast Iron A 126 Class B
3	Disc			Cast Iron Rubber (BUNA-N) A 126 Class B
4	Handwheel			Cast Iron A 126 Class B
5	Stem			Stainless Steel A 276 Type 304
6	Stuffing Box			Cast Iron A 126 Class B
7	O-Ring A			BUNA-N D 2000 BK 707
8	O-Ring B			BUNA-N D 2000 BK 707
9	Bonnet Gasket			BUNA-N D 2000 BK 707
10	Stem Nut			Stainless Steel A 276 Type 304
11	Wiper Ring			BUNA-N D 2000 BK 707
12	Bonnet Bolt & Nut			Steel A 307 Grade B
13	Stud & Nut			Steel A 307 Grade B
14	Handwheel Washer			Steel A 284
15	Top Nut			Steel A 307 Grade B
16	Operating Nut			Cast Iron A 126 Class B
